Upanel
Polycarbonate Glazing System
Fastest most efficient Polycarbonate mulitwall glazing system on the market with the versatility of a unique fastening system. Ideal for wide range of applications from building curtain walling, domed walkways and insulation.

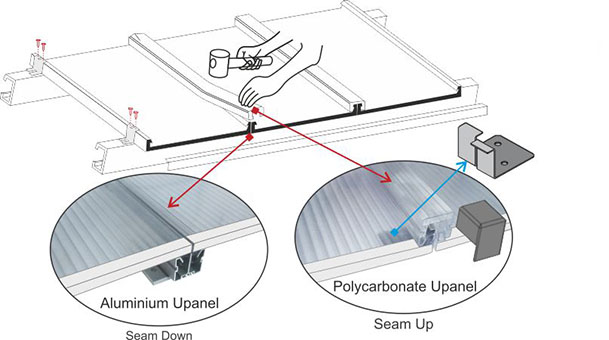

Duro Upanel® system is a new solution for polycarbonate roof applications . The Upanel is connected by either a polycarbonate, aluminum or even a steel connector with its own klik fastening systems and does not need any fastening the through sheet. Upanel can be mounted with seam up or facing down.
Product Information
- Weather Resistant
- Easy to clean
- Economically priced
- Easy installation
- Will last for years
- Roofing
- Curtain walls
- Skylights
- Shed
- Vertical glazing
| Panel Thickness: | 40mm |
| Panel Structure: | 10 wall |
| Modular Width: | 500mm |
| Overall Width | 526mm |
| Thermal Insulation | 0.99 W/m²K |
| Impact Resistance | Class B |
| Recommended Minimum Pitch | 10° |
*Minimum order quantities apply
Aluminium Panel
Polycarbonate Panel
